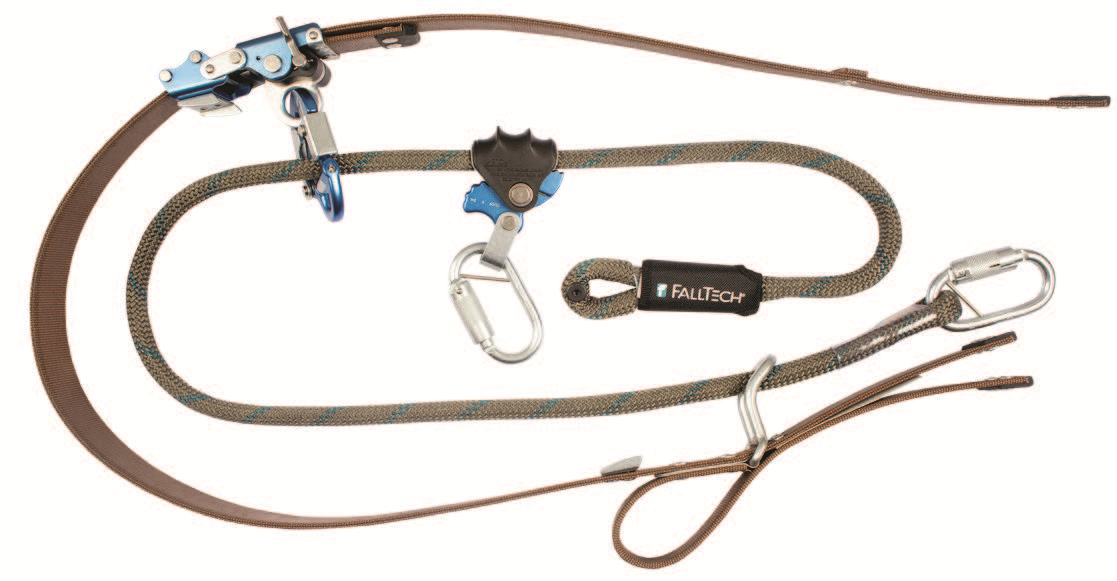

FallTech 8180T APE-X Pro Wood Pole Fall Restrict Device (WPFRD), Transmission

Designed for exceptional user experience and performance, the patent pending FallTech® APE-X™ Pro Wood Pole Fall Restrict Device (WPFRD) eliminates the shortcomings of traditional fall restrict devices, allowing you to work smoother and faster than ever before.

Distribution (4" to 30" Pole Diameter)
Strap and rope assembly

ASTM Type Type AB

Freefall Limit 2 feet (0.6 m) or less

ASTM User Capacity One User up to 425 lbs. Max

ANSI User Capacity One User up to 310 lbs. Max

OSHA User Capacity One User up to 425 lbs. Max

Strap Neoprene Impregnated Brown Nylon (Min. 5,000 lbs.)

Rope 15mm Technora® Kernmantle Rope (Min. 5,000 lbs.)

Adjusters Aluminum Alloy and Plated Alloy Steel

Cleats Plated Alloy Steel

Bent D-ring Plated Alloy Steel

Mini Snap Hook Aluminum Alloy and Plated Alloy Steel (5,000 lb. Min. Strength with 3,600 lb Min. Gate Strength)

Body Belt Carabiners Plated Alloy Steel (5,000 lb. Min. Strength with 3,600 lb Min. Gate Strength)

ANSI Z359.3-2019
ASTM F887-20 Type AB
CSA Z259.14-12 (R2021) Type AB
