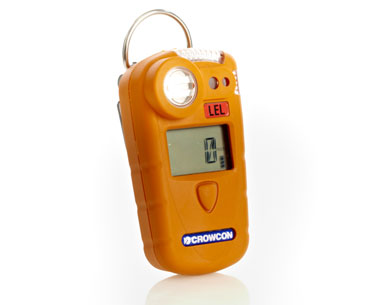

Crowcon Gasman Single Gas Personal Monitor, Rechargeable
$345.00
The Gasman is a rugged, compact single gas detector, designed for use in the toughest environments. Its compact and lightweight design makes it the ideal choice for industrial gas detection, in oil and gas, chemical plants (with exotic gases), steel works (special CO sensor), hospitality (CO2), renewable energy (hydrogen) and...
customers are viewing this product
DON'T FORGET TO ADD YOUR CHARGER HERE
Meet the next generation of oxygen gas detection
Gasman is now available with lead free, long-life oxygen sensors
- 5-year sensor warranty
- Lead-free for RoHS compliance
- Reduced sensor replacement
- Lower cost of ownership
- Reduced environmental impact
Robust
- Tough Polycarbonate Housing – protects you in the harshest environments
- Water And Dust Resistant To IP65
- Full Overmoulding – high impact resistance
Effective warning
- Two Levels Of Instantaneous Alarm And TWA Alarms for toxic versions – ensures prompt evacuation from hazardous zone
- 95dB Audible Alarm
- Vivid Twin Red/Blue Visual Alarm – if ambient noise is high, Gasman alerts you by vibrating and with the high impact blue/red LED alarms
- Internal Vibrating Alarm
Flexible
- Versions Available For Flammable Gas, Oxygen And Toxic Gases – gas detector tailored to your requirements
- Rechargeable Versions for all gas types
- Non-Rechargeable Versions so ideal for oxygen and toxic gases
- Real-Time TWA And Peak Display Options
- Fully Interchangeable Intelligent Sensor Modules
User friendly
- One Button Operation – quick and easy to use
- Backlit Display For Gas Diagnostics And Operating Status – easy to read
- Ultra Lightweight; Just 85g For Toxic Versions – comfortable to wear
Specifications
| Size | 90 x 48 x 24 mm (3.5 x 1.9 x 0.95 ins) |
| Weight | Flammable: 138g (4.9oz) Toxic: 85g (3oz) Oxygen: 129g (4.6oz) Carbon monoxide: 139g (4.9oz) |
| Typical response times (T90) | Flammable: 20s Flammable (MPS): 17s Toxic gas: 20s Oxygen: 10s Oxygen (Long-Life): 10s |
| Alarms | Audible: 95dB; Multiple alarm options let you select distinctive tones for different alarm levels Visible: Dual colours red/ blue flashing LEDs in a gas hazard Internal vibrating alarm |
| Display | Custom LCD with backlight, with display of gas concentration. Graphic symbols for battery (with proportional indication of remaining operation time), and display mode. Start up indication when calibration is due within 30 days, calibration overdue or service required. Normal display: Real time gas concentration levels Display recall: Peak readings and TWA |
| Data logging | Full timed datalogging with adjustable sample rate, set to 1 min. data rate as default. 900 hours storage at 1 min. interval (54,000 logs), >4800 events |
| Battery | Rechargeable lithium battery for all gas types Non-rechargeable lithium battery for toxics and oxygen (excluding CO2) |
| Operating time* | Rechargeable with MPS: >3days Rechargeable: 12 hours minimum for flammable unit Non-rechargeable: Up to 2 years |
| Sampling | Optional manual aspirator |
| Operating temperature** | -20°C to +65°C (-4°F to +149°F) |
| Humidity | 5 – 95% RH 0 to 99% RH (O2 LL MPS) |
| Ingress protection | IP65 |
| Approvals |
Europe: Toxic or O2: ATEX II 1G Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +65°C) BASEEFA04ATEX0384 Flammable: ATEX II 2G Ex ia db IIC T4 Gb (-20°C ≤ Ta ≤ +65°C) BASEEFA04ATEX0383Flammable (MPS): ATEX II 1G Ex ia IIC T4 Ga (-20°C ≥Ta ≥ +65°C) BASEEFA04ATEX0383 International: Toxic or O2: IECEx Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +65°C) BAS05.0039 Flammable: IECEx Ex db ia IIC T4 Gb (-20°C ≤ Ta ≤ +65°C) BAS05.0038 North America: CSA Class 1 Groups A,B,C,D Division 1 |
| Standards |
Europe: EN60079-0, EN60079-11, EN60079-1, ATEX 2014/34/EU North America: CSA22.2, 152EN50270, EN50271, EN61779, EN45544 |
| PC Interface | RS232 connection from interface module in charger RS232/USB converter available |
| Calibration | Gasman can be routinely calibrated using Portables PC software or by using Checkbox IMH |
| Accessories | Gasman is supplied with an integral alligator clip.
Optional accessories: Gas test kit, Gasman external filter, leather carry case, single way charger, charger interface software and communication kit (excluding PSU), 5 way multi-charger |
| Crowcon Connect Compatible? | Yes |
*Operating time will depend on operating pattern and alarm occurrence. Frequent or long lasting alarms and use of the optional confidence beep will reduce battery life.
**Toxic and oxygen sensors are not rated for continuous operation at high temperatures. Consult Crowcon if operating temperatures are likely to exceed 40°C (104°F) for extended periods.
Gases and Ranges
Required ranges and alarms vary by country and application and these can be configured as required. Each gas channel can have two instantaneous alarm levels set. Toxic units also have Time Weighted Average (TWA) alarms.
Flammable gas calibration is available for methane, propane, butane, pentane, hydrogen and
ethylene as standard.
Gasman is also available in a safe area CO2 version offering 0-5% carbon dioxide measurement.
| Gas | Range | Standard Alarm (UK) |
| Ammonia (NH3) | 0-1000 ppm | 25 ppm |
| Carbon Monoxide (CO) | 0-2000 ppm | 20 ppm |
| Carbon Dioxide (CO2) | 0-5% vol. | 0.5% vol. |
| Carbon Monoxide (H2 filtered) |
0-500ppm | 20ppm |
| Chlorine (Cl2) | 0-20 ppm | 0.3 ppm |
| Chlorine Dioxide (CIO2) | 0-1 ppm | 0.1 ppm |
| Ethylene Oxide (ETO) | 0-10 ppm | 3 ppm |
| Flammable True LEL (MPS) | 0-100% LEL | 20% LEL |
| Flammable | 0 – 100% LEL | 20% LEL |
| Fluorine (F2) | 0-1 ppm | 0.5 ppm |
| Hydrogen (H2) | 0-2000 ppm | N/A |
| Hydrogen Cyanide (HCN) | 0-25 ppm | 5 ppm |
| Hydrogen Fluoride (HF) | 0-10 ppm | 1 ppm |
| Hydrogen Sulphide (H2S) | 0-250ppm | 5 ppm |
| Nitric Oxide (NO) | 0-100 ppm | 25 ppm |
| Nitrogen Dioxide (NO2) | 0-20 ppm | 1 ppm |
| Oxygen (O2), Long-Life | 0-25% vol. | 19.5% / 23.5% vol. |
| Oxygen (O2) | 0-25% vol. | 19.5% / 23.5% vol. |
| Ozone (O3) | 0-1 ppm | 0.1 ppm |
| Phosphine (PH3) | 0-5 ppm | 0.1 ppm |
| Phosgene (COCL2) | 0-1 ppm | 0.1 ppm |
| Sulphur Dioxide (SO2) | 0-20 ppm | 1 ppm |
