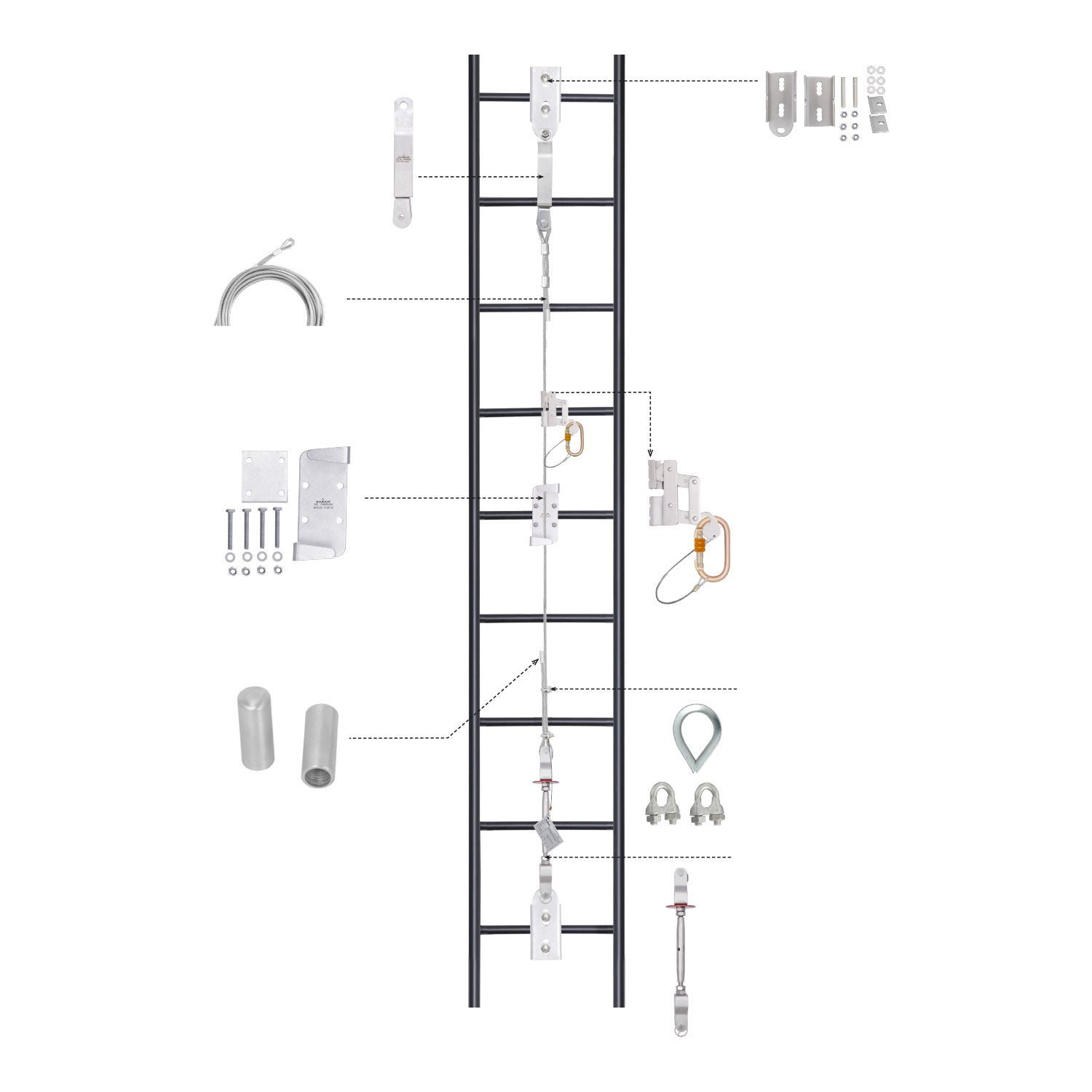

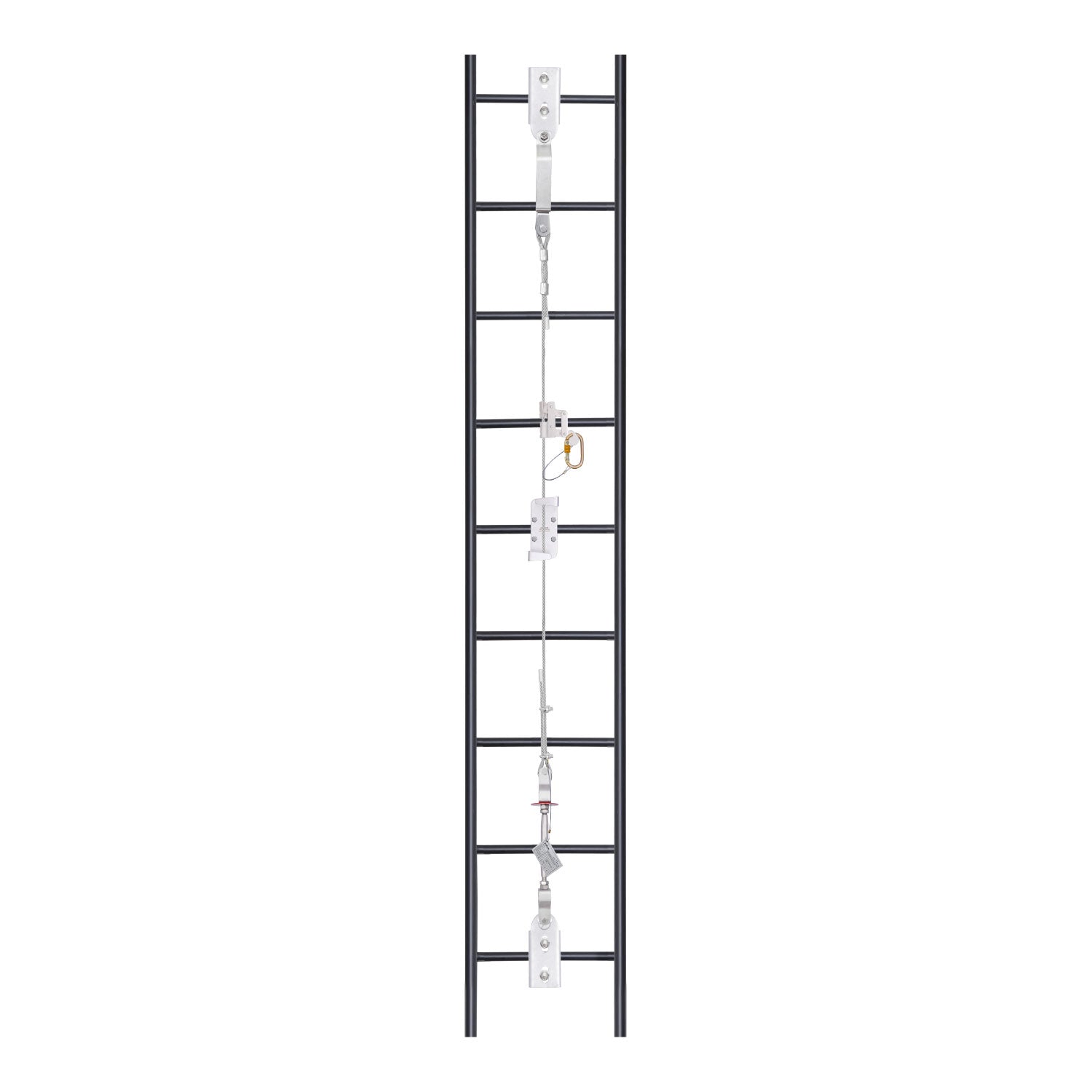

This vertical Fall Arrest system is an integrated solution to arrest the fall of a user who frequently climbs up and down a ladder.
The unique feature of this system is a permanently installed Stainless Steel Shock Absorber at the top of the line which offers distinct advantage over the textile absorber used in other lines in term of UV degradation and resistance to harsh climate conditions. Also, the Shock Absorber is constructed of unique design that helps in easy installation of the system.
The Vertical Anchorage Line is made of Stainless Steel wire rope and is maintained in the rigid position by the use of 2 mounting brackets – one at the top and other at the bottom.
The Stainless Steel Rope Grab is directly connected to the Harness of the user without any additional lanyard.
To maintain the rigidity and high tension in the Anchorage Line, a screw type mechanical tensioner is provided at the end of the Anchorage Line at the bottom, connecting it to the lower mounting bracket. The Tensioner is provided with a unique tension indicator which helps ensure appropriate tension is attained, and maintained in the line.
Includes cable, termination hardware and cable grab.
