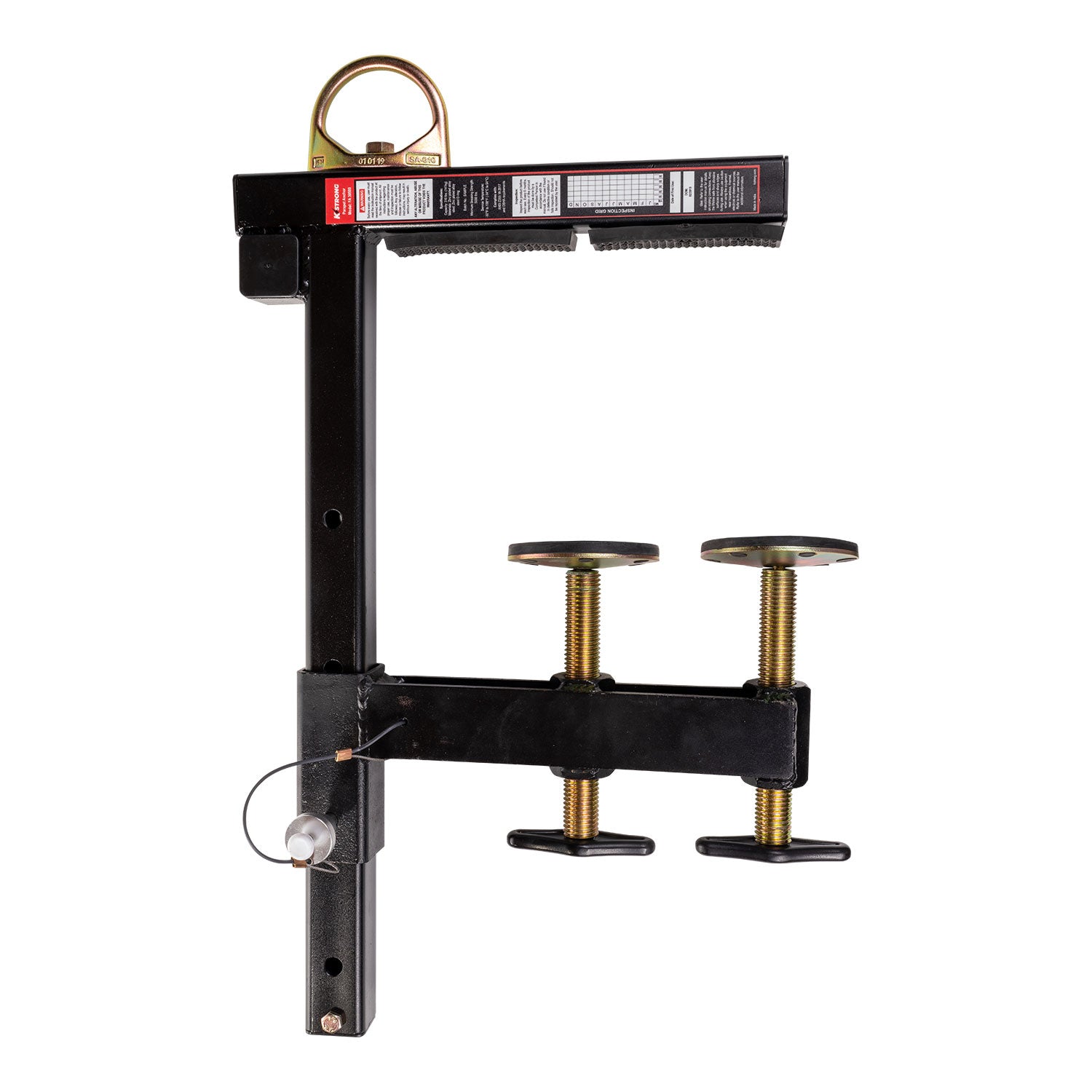

KStrong Parapet Clamp Anchor – Adjustable Arm (each)

KStrong
KSTUFA30070
Direct from manufacturer
$198.00
DESIGN: Parapet anchor with extended movable arm which allows installation on the parapet with moulding on outer edge. Anchor suitable to be installed on the parapet of a building such that the anchor point lies at the top on the outside facade of the building. Suitable to be installed on...
$198.00
customers are viewing this product
Tags: /

DESIGN:

  • Parapet anchor with extended movable arm which allows installation on the parapet with moulding on outer edge.
  • Anchor suitable to be installed on the parapet of a building such that the anchor point lies at the top on the outside facade of the building.
  • Suitable to be installed on varying thickness of the parapet. Width adjustment feature provided.
  • Tightening on to the parapet by use of rubber disks.

INSTALLATION:

Min. width of the Parapet on which Installation Possible: 2.36” (60mm)
Max. width of the Parapet on which Installation Possible: 14.17” (360mm)


MATERIAL:

High strength alloy steel


FINISH:

Silver or Golden Yellow Galvanized


SYSTEM STRENGTH:

Greater than 25 kN


WEIGHT:

21.08 lbs. ± 0.22 lbs. (9560gm ± 100gm)


RELEVANT STANDARDS:

Meets or Exceeds ANSI Z359.18-2017
