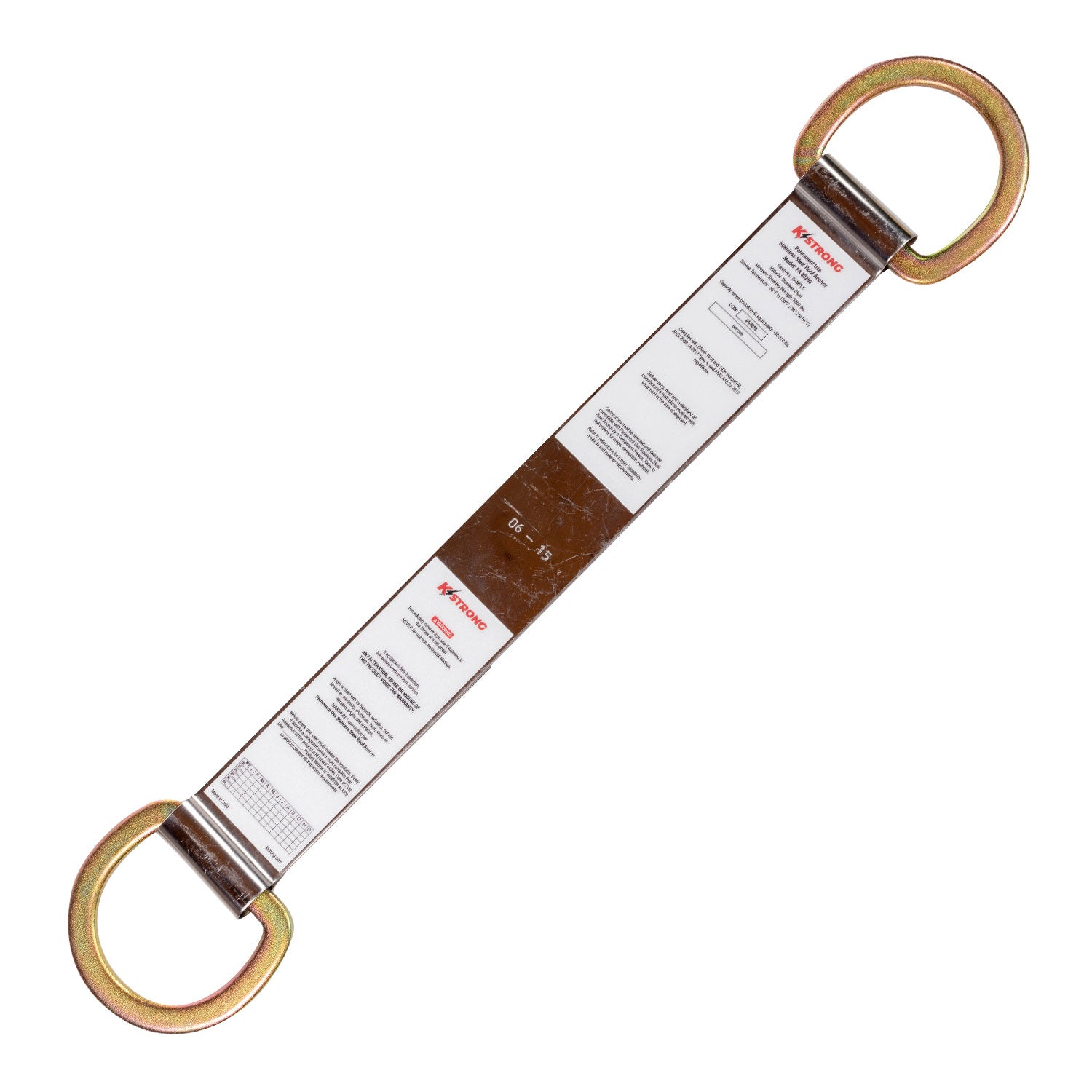

KStrong UFA30020 Permanent Use Stainless Steel Roof Anchor with D-Rings

DESIGN:

• An ideal permanent Anchorage device to be fixed on wooden beams used in roofing.
• Consists of one stainless steel base plate having 8 holes which can be fixed on wooden beams by means of nails inserted in the holes.
• Stamped D-ring on both ends, can be used safely as an anchorage point.

MATERIAL:

Base Plate : Stainless Steel
D-Ring : Medium carbon Steel

FINISH:

Base Plate : Electro-polished
D-Ring : Zinc Plated (Yellow/Silver )

MINIMUM BREAKING STRENGTH:

5000 lbs (2268 kg)

WEIGHT:

0.83 lbs. ± 0.02 lbs. (376 gm ± 10 gm)

RELEVANT STANDARDS:

Meets or Exceeds ANSI Z359.18-2007 Type A & OSHA COMPLIANT.
