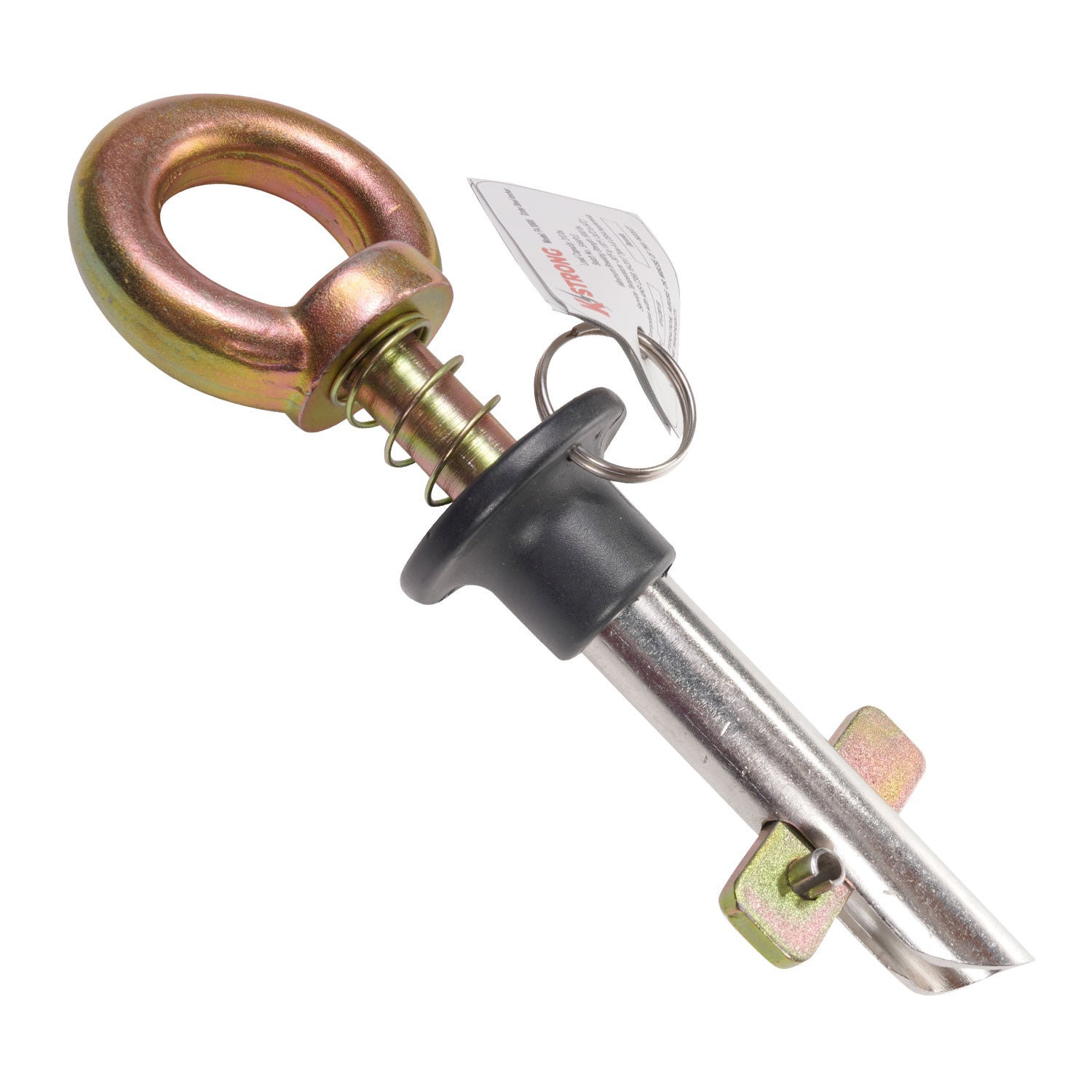

KStrong UFA30080 Removable Steel Girder Anchor

Vendor: KStrong
SKU: KSTUFA30080
Availability: Direct from Manufacturer
$28.22
$30.54
$28.22
DESIGN: Girder steel anchor is removable/ reusable anchor to be mounted on solid steel structures, Girders and steel I-Beams. Can be installed very easily with one hand only. Maximum thickness...
Quantity: Single
Subtotal: $28.22
KStrong UFA30080 Removable Steel Girder Anchor

KStrong UFA30080 Removable Steel Girder Anchor

$30.54 $28.22

KStrong UFA30080 Removable Steel Girder Anchor

$30.54 $28.22
Quantity: Single

DESIGN:

  • Girder steel anchor is removable/ reusable anchor to be mounted on solid steel structures, Girders and steel I-Beams.
  • Can be installed very easily with one hand only.
  • Maximum thickness of the structure on which installation is possible is 1.57” (40mm).

USAGE:

For use as an anchorage point for fall protection equipment .


MATERIAL:

Eye nut & Main body, Alloy steel, Outer Body, Stainless steel moulded with polymer


RECOMMENDED BOLT HOLE SIZE:

0.80” (21mm) to 1.18” (30mm)


STATIC STRENGTH:

Greater than 5000 lbs (2268 kg)


WEIGHT:

1.21 lb ± 0.02 lb (550 gm. ±10gm).


RELEVANT STANDARDS:

Meets or Exceeds ANSI Z359.18-2017 Type A
