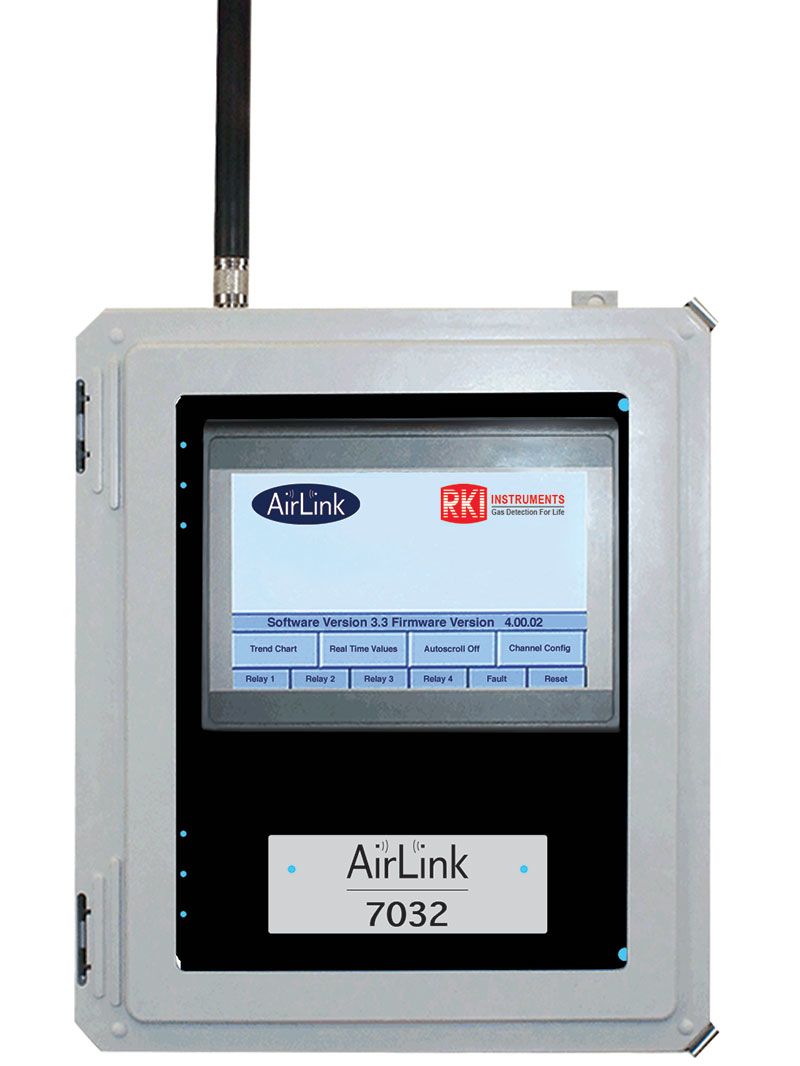

RKI AirLink 7032 Wireless Touchscreen Controller (each)
AirLink 7032 Wireless Controller
Wireless Touchscreen Controller
Features
-
32 Channel hybrid touchscreen controller – supports wireless transmitters and up to 4 wired transmitters
-
Radio options: 900 MHz radio or 2.4 GHz Standard
-
12 to 35 VDC operating voltage with optional AC power supply
-
Operating temperature range of -20ºC to +50ºC
-
7 Inch full color touchscreen
-
Adjustable background gas setting
-
Programmable alarms
-
4 configurable alarm set-points:
-
Set points – 4 red alarms
-
Indicators; 4 dry-contact relays (4 amps max per relay)
-
-
Status indicator for fault conditions, Amber indicator for system faults
-
Output options: Wet contact fault DC fault terminal, relay 4 can optionally be configured as a fault relay, RS-485 Modbus
-
2GB USB drive included for datalogging
-
1 Year limited hardware warranty
-
NEMA-4X standard fiberglass enclosure with clear window
Description
The RKI Instruments AirLink 7032 Controller is a hybrid touchscreen monitor that supports up to 32 wireless sensor inputs. Four channels can be setup for 4-20 mA wired input, making the controller compatible with both wireless and wired sensors. Durable, flexible and customizable, this controller can satisfy any wireless application.
The AirLink 7032 Controller represents the latest leading edge wireless technology in fixed gas detection today.
Specifications
| Product Type | 32 Channel gas monitor |
| Operating Voltage | 12V to 35V DC or 120V AC (optional) |
| Current Draw | 300 mA (at 24V DC) |
| Power Supply | 6.25A (150W), 85/264V AC to 24V DC (optional) |
| Customizable Settings | Option to disable alarm relays |
| Protection | Power electromagnetic interference (EMI) filter
4-20 mA surge suppression RS-485 surge suppression |
| Display Screen | 800 x 480 Resolution
7 inch resistive touchscreen |
| Interface | Touchscreen |
| Temperature Range | -20°C to +50°C |
| Wireless (Digital), Wired (Analog) Input | Up to 32 Wireless sensor inputs, up to 4 can be 4-20 mA wired analog inputs |
| Digital Output | RS-485 Modbus |
| Alarm Indications | Optional strobe and audible alarm installed on housing (uses 1 or 2 relays) |
| Relays | • 4 Dry-contact relays with 4 amp replaceable fuses
• Individually set full scale, normally open or normally closed, latching or non-latching |
| Product Compatibility | Wireless: All AirLink gas detector head transmitters
Wired (4-20mA): M2A, S2, T2A, T3A, VOC Pro, and Air Alert |
| Wireless Radio Options | 900 MHz radio
2.4 GHz radio |
| Networks | 52 Networks (900 MHz radio)
78 Networks (2.4 GHz radio) 255 Addresses per network |
| Enclosure Materials | NEMA-4X fiberglass enclosure with clear window |
| Add On Hardware | Optional strobe and/or horn attached (uses one relay) |
| Product Dimensions | 12 in, L x 10 in. D x 6 in. H (Max. dimensions with attachments) |
| Total Weight | 12.15 lbs |
| Product Mounting | 4 Mounting feet, 6 in. D x 12-1/4 in. T (included), Maximum mounting bolt/screw size of 5/16 in. (8mm) diameter |
| Hardware Warranty | 1-Year limited |
Specifications subject to change without notice.
Made in the USA
