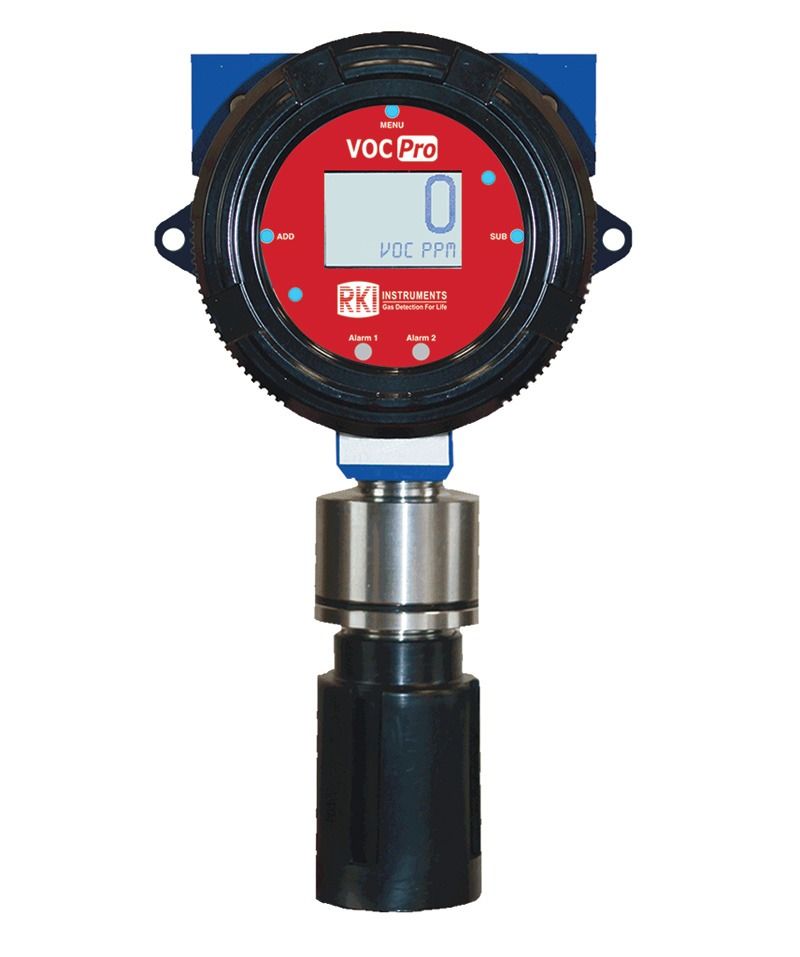

RKI VOC Pro PID Gas Detector 10.6 eV Lamp (each)
3-Wire Explosion Proof Transmitter
Features
-
PID sensor: 10.6 eV ppb / 10.6 eV ppm
-
Wired power (3-Wire), 12 to 35 VDC operating voltage
-
Operating temperature range -40°C to +54°C
-
Graphical LCD with LED backlight
-
3 Push-button interface (ADD, MENU, SUB) with corresponding magnetic, non-intrusive switches
-
2 Individually configurable alarms
-
2 Front panel LED indicators (amber and red)
-
2 Optional fully programmable alarm relays (dry contacts)
-
Output options: 4-20mA (3-wire) analog, RS-485 modbus (4 wire)
-
1-Year warranty (see specifications)
Description
The VOC Pro Series Gas Detector is a versatile assembly that uses a PID sensor to detect a variety of gases. Wired power (12 to 35 VDC) with 4-20 mA analog and RS-485 Modbus outputs are standard. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.
The VOC Pro represents the latest leading edge technology in fixed gas detection today.
